WIRE CONNECTOR

Class：PLASTIC ACCESSORIES

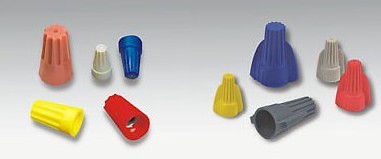

Wire Connectors

Material：UL Nylon 66 with spring inside.
Usage：peel wire coat insert the wire in then tighen.
Specifications
Item No. H(mm) W(mm) D(mm)

Suitable Wires

Color
CP1 15 8.7 6.5 MIN#20×1+#22×1
MAX#16×2 		Grey
CP2 18 10.0 7.5 MIN#20×3
MAX#16×3 		Blue
CP3 23 11.2 9.5 MIN#20×3
MAX#16×3+#18×1 		Orange
CP4 24.2 13.6 10.8 MIN#14×1+#18×1
MAX#14×4+#18×1 		Yellow
CP6 27.8 16.1 12.7 MIN#14×2
MAX#10×2+#12×2 		Red

Item No. Dimension(mm) Suitable Wire
A.W.G 		Color
A B C D E
SW1 6.7 10.0 19.0 8.7 25.9 18-10 Yellow
SW2 7.8 11.2 18.95 8.55 28.9 22-8 Brown
SW3 9.4 13.3 22.9 9.2 31.9 18-8 Red
SW4 10.5 14.5 25.1 9.6 32.93 18-8 Grey
SW5 12.8 17.5 31.8 12.45 40.2 14-6 Bule
